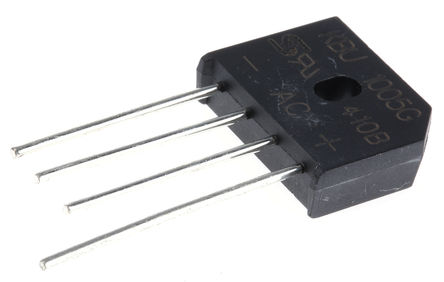

Fairchild/ON Semiconductor KBU1005G T0
- Part Number:
- KBU1005G T0
- Manufacturer:
- Fairchild/ON Semiconductor
- Ventron No:
- 8940834-KBU1005G T0
- Description:
- Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 600V 1.1V @ 10A 4-Termination 1-Phase 4-SIP, KBU
- ECAD Model:
-
- Datasheet:
- KBU1005G T0
Fairchild/ON Semiconductor KBU1005G T0 technical specifications, attributes, parameters and parts with similar specifications to Fairchild/ON Semiconductor KBU1005G T0.
- Factory Lead Time5 Weeks
- Mounting TypeThrough Hole
- Package / Case4-SIP, KBU
- Surface MountNO
- Diode Element MaterialSILICON
- Operating Temperature-55°C~150°C TJ
- Published2012
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- Number of Terminations4
- ECCN CodeEAR99
- Additional FeatureUL RECOGNIZED
- HTS Code8541.10.00.80
- TechnologyStandard
- Terminal FormWIRE
- Peak Reflow Temperature (Cel)NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)NOT SPECIFIED
- JESD-30 CodeR-PSFM-W4
- Number of Elements4
- ConfigurationBRIDGE, 4 ELEMENTS
- Diode TypeSingle Phase
- Current - Reverse Leakage @ Vr5μA @ 600V
- Voltage - Forward (Vf) (Max) @ If1.1V @ 10A
- Case ConnectionISOLATED
- Output Current-Max10A
- Current - Average Rectified (Io)10A
- Number of Phases1
- Non-rep Pk Forward Current-Max200A
- Voltage - Peak Reverse (Max)600V
- Breakdown Voltage-Min600V
- RoHS StatusROHS3 Compliant
KBU1005G T0 Overview
Bridge rectifier is a type of electronic component that is available in a 4-SIP, KBU package.Temperatures below -55°C~150°C TJ ensure normal operation.This device is capable of supporting the maximum output voltage of 10A.
KBU1005G T0 Features
4-SIP, KBU package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 10A
KBU1005G T0 Applications
There are a lot of Taiwan Semiconductor Corporation
KBU1005G T0 applications of bridge rectifiers.
Extremely robust construction
Fuse-in-glass diodes design
Electrically isolated aluminum case
Motor controls – Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
Transportation – Traction rectifiers and auxiliary rectifiers
Inductive heating – Input rectifiers
Bridge rectifier is a type of electronic component that is available in a 4-SIP, KBU package.Temperatures below -55°C~150°C TJ ensure normal operation.This device is capable of supporting the maximum output voltage of 10A.
KBU1005G T0 Features
4-SIP, KBU package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 10A
KBU1005G T0 Applications
There are a lot of Taiwan Semiconductor Corporation
KBU1005G T0 applications of bridge rectifiers.
Extremely robust construction
Fuse-in-glass diodes design
Electrically isolated aluminum case
Motor controls – Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
Transportation – Traction rectifiers and auxiliary rectifiers
Inductive heating – Input rectifiers
KBU1005G T0 More Descriptions
Bridge Rectifier Glass Passivated Single 600V 10A 4-Pin Case KBU Tray
BRIDGE RECT 1PHASE 600V 10A KBU
BRIDGE RECT 1PHASE 600V 10A KBU
The three parts on the right have similar specifications to KBU1005G T0.
-
ImagePart NumberManufacturerFactory Lead TimeMounting TypePackage / CaseSurface MountDiode Element MaterialOperating TemperaturePublishedPart StatusMoisture Sensitivity Level (MSL)Number of TerminationsECCN CodeAdditional FeatureHTS CodeTechnologyTerminal FormPeak Reflow Temperature (Cel)Time@Peak Reflow Temperature-Max (s)JESD-30 CodeNumber of ElementsConfigurationDiode TypeCurrent - Reverse Leakage @ VrVoltage - Forward (Vf) (Max) @ IfCase ConnectionOutput Current-MaxCurrent - Average Rectified (Io)Number of PhasesNon-rep Pk Forward Current-MaxVoltage - Peak Reverse (Max)Breakdown Voltage-MinRoHS StatusSupplier Device PackageMountPackagingSubcategoryView Compare
-
KBU1005G T05 WeeksThrough Hole4-SIP, KBUNOSILICON-55°C~150°C TJ2012Active1 (Unlimited)4EAR99UL RECOGNIZED8541.10.00.80StandardWIRENOT SPECIFIEDNOT SPECIFIEDR-PSFM-W44BRIDGE, 4 ELEMENTSSingle Phase5μA @ 600V1.1V @ 10AISOLATED10A10A1200A600V600VROHS3 Compliant----- -
5 WeeksThrough Hole4-SIP, KBU---55°C~150°C TJ2012Active1 (Unlimited)----Standard------Single Phase5μA @ 100V1.1V @ 10A--10A--100V-ROHS3 CompliantKBU---
-
5 WeeksThrough Hole4-SIP, KBUNOSILICON-55°C~150°C TJ2012Active1 (Unlimited)4EAR99UL RECOGNIZED8541.10.00.80StandardWIRENOT SPECIFIEDNOT SPECIFIEDR-PSFM-W44BRIDGE, 4 ELEMENTSSingle Phase5μA @ 1000V1.1V @ 10AISOLATED10A10A1200A1kV1000VROHS3 Compliant----
-
12 WeeksThrough Hole4-SIP, KBU-SILICON-55°C~125°C TJ2011Active1 (Unlimited)4EAR99UL RECOGNIZED8541.10.00.80StandardWIRE26030R-PSIP-W44BRIDGE, 4 ELEMENTSSingle Phase10μA @ 100V1V @ 5A-10A10A1240A100V100VROHS3 Compliant-Through HoleBulkBridge Rectifier Diodes
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 200V 1.1V @ 10A 4-Termination 1-Phase 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 400V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 800V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 100V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 50V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 1000V 1.1V @ 10A 4-Termination 1-Phase 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~125°C TJ 10μA @ 100V 1V @ 5A 4-Termination 1-Phase 4-SIP, KBU Bulk
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 600V 1.1V @ 10A 4-Termination 1-Phase 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 10μA @ 1000V 1V @ 5A 4-Termination 1-Phase 4-SIP, KBU Tray
-
