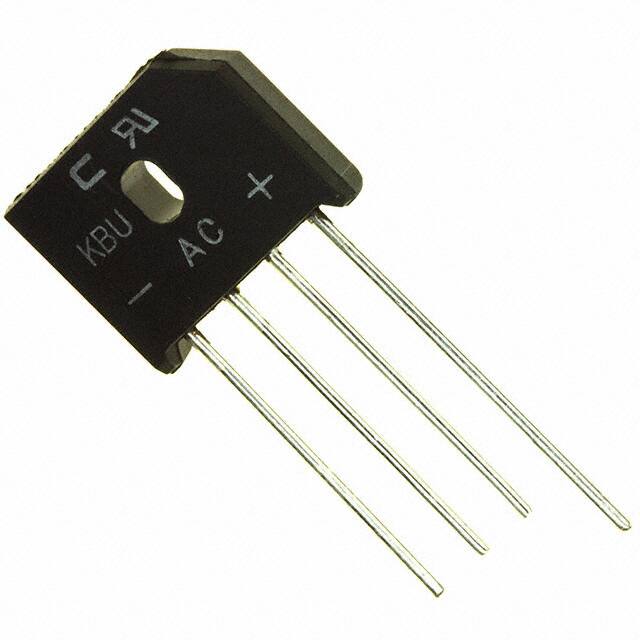

Comchip Technology KBU1010-G
- Part Number:
- KBU1010-G
- Manufacturer:
- Comchip Technology
- Ventron No:
- 8939926-KBU1010-G
- Description:
- Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 10μA @ 1000V 1V @ 5A 4-Termination 1-Phase 4-SIP, KBU Tray
- ECAD Model:
-
- Datasheet:
- KBU1010-G
Comchip Technology KBU1010-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology KBU1010-G.
- Factory Lead Time12 Weeks
- MountThrough Hole
- Mounting TypeThrough Hole
- Package / Case4-SIP, KBU
- Diode Element MaterialSILICON
- Operating Temperature-55°C~150°C TJ
- PackagingTray
- Published2011
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- Number of Terminations4
- ECCN CodeEAR99
- Additional FeatureUL RECOGNIZED
- HTS Code8541.10.00.80
- SubcategoryBridge Rectifier Diodes
- TechnologyStandard
- Terminal FormWIRE
- Peak Reflow Temperature (Cel)260
- Time@Peak Reflow Temperature-Max (s)30
- JESD-30 CodeR-PSIP-W4
- Number of Elements4
- ConfigurationBRIDGE, 4 ELEMENTS
- Diode TypeSingle Phase
- Current - Reverse Leakage @ Vr10μA @ 1000V
- Voltage - Forward (Vf) (Max) @ If1V @ 5A
- Max Reverse Leakage Current10μA
- Max Surge Current240A
- Output Current-Max10A
- Current - Average Rectified (Io)10A
- Number of Phases1
- Voltage - Peak Reverse (Max)1kV
- Breakdown Voltage-Min1000V
- RoHS StatusROHS3 Compliant
KBU1010-G Overview
The component is available as a 4-SIP, KBU package.Reverse leakage current should be monitored, and it shouldn't exceed 10μA.A Through Hole mounting method is used for the device.In order for rectifier to operate normally, rectifier must be kept at a temperature of -55°C~150°C TJ.A maximum voltage of 10A can be supported by it.Ensure that surge current does not exceed 240A.
KBU1010-G Features
4-SIP, KBU package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 10A
KBU1010-G Applications
There are a lot of Comchip Technology
KBU1010-G applications of bridge rectifiers.
Low thermal resistance
Extremely robust construction
Fuse-in-glass diodes design
Electrically isolated aluminum case
Motor controls – Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
Transportation – Traction rectifiers and auxiliary rectifiers
The component is available as a 4-SIP, KBU package.Reverse leakage current should be monitored, and it shouldn't exceed 10μA.A Through Hole mounting method is used for the device.In order for rectifier to operate normally, rectifier must be kept at a temperature of -55°C~150°C TJ.A maximum voltage of 10A can be supported by it.Ensure that surge current does not exceed 240A.
KBU1010-G Features
4-SIP, KBU package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 10A
KBU1010-G Applications
There are a lot of Comchip Technology
KBU1010-G applications of bridge rectifiers.
Low thermal resistance
Extremely robust construction
Fuse-in-glass diodes design
Electrically isolated aluminum case
Motor controls – Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
Transportation – Traction rectifiers and auxiliary rectifiers
KBU1010-G More Descriptions
Rectifier Bridge Diode Single 1KV 10A 4-Pin Case KBU Box
Product Description Demo for Development.
BRIDGE RECT 1PHASE 1KV 10A KBU
RECT BRIDGE CELL 10A 1000V KBU
Product Description Demo for Development.
BRIDGE RECT 1PHASE 1KV 10A KBU
RECT BRIDGE CELL 10A 1000V KBU
The three parts on the right have similar specifications to KBU1010-G.
-
ImagePart NumberManufacturerFactory Lead TimeMountMounting TypePackage / CaseDiode Element MaterialOperating TemperaturePackagingPublishedPart StatusMoisture Sensitivity Level (MSL)Number of TerminationsECCN CodeAdditional FeatureHTS CodeSubcategoryTechnologyTerminal FormPeak Reflow Temperature (Cel)Time@Peak Reflow Temperature-Max (s)JESD-30 CodeNumber of ElementsConfigurationDiode TypeCurrent - Reverse Leakage @ VrVoltage - Forward (Vf) (Max) @ IfMax Reverse Leakage CurrentMax Surge CurrentOutput Current-MaxCurrent - Average Rectified (Io)Number of PhasesVoltage - Peak Reverse (Max)Breakdown Voltage-MinRoHS StatusSupplier Device PackageSurface MountCase ConnectionNon-rep Pk Forward Current-MaxView Compare
-
KBU1010-G12 WeeksThrough HoleThrough Hole4-SIP, KBUSILICON-55°C~150°C TJTray2011Active1 (Unlimited)4EAR99UL RECOGNIZED8541.10.00.80Bridge Rectifier DiodesStandardWIRE26030R-PSIP-W44BRIDGE, 4 ELEMENTSSingle Phase10μA @ 1000V1V @ 5A10μA240A10A10A11kV1000VROHS3 Compliant----- -
5 Weeks-Through Hole4-SIP, KBU--55°C~150°C TJ-2012Active1 (Unlimited)-----Standard------Single Phase5μA @ 50V1.1V @ 10A---10A-50V-ROHS3 CompliantKBU---
-
5 Weeks-Through Hole4-SIP, KBUSILICON-55°C~150°C TJ-2012Active1 (Unlimited)4EAR99UL RECOGNIZED8541.10.00.80-StandardWIRENOT SPECIFIEDNOT SPECIFIEDR-PSFM-W44BRIDGE, 4 ELEMENTSSingle Phase5μA @ 1000V1.1V @ 10A--10A10A11kV1000VROHS3 Compliant-NOISOLATED200A
-
12 WeeksThrough HoleThrough Hole4-SIP, KBUSILICON-55°C~125°C TJBulk2011Active1 (Unlimited)4EAR99UL RECOGNIZED8541.10.00.80Bridge Rectifier DiodesStandardWIRE26030R-PSIP-W44BRIDGE, 4 ELEMENTSSingle Phase10μA @ 100V1V @ 5A--10A10A1100V100VROHS3 Compliant---240A
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 200V 1.1V @ 10A 4-Termination 1-Phase 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 400V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 800V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 100V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 50V 1.1V @ 10A 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 1000V 1.1V @ 10A 4-Termination 1-Phase 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~125°C TJ 10μA @ 100V 1V @ 5A 4-Termination 1-Phase 4-SIP, KBU Bulk
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5μA @ 600V 1.1V @ 10A 4-Termination 1-Phase 4-SIP, KBU
-
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 10μA @ 1000V 1V @ 5A 4-Termination 1-Phase 4-SIP, KBU Tray
-
