Infineon Technologies TZ600N12KOFHPSA1
- Part Number:
- TZ600N12KOFHPSA1
- Manufacturer:
- Infineon Technologies
- Ventron No:
- 8986170-TZ600N12KOFHPSA1
- Description:
- TZ600N12KOFHPSA1 datasheet pdf and Thyristors - SCRs - Modules product details from Infineon Technologies stock available at Ventron
- Datasheet:
- TZ600N12KOFHPSA1
Infineon Technologies TZ600N12KOFHPSA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies TZ600N12KOFHPSA1.
- Factory Lead Time8 Weeks
- MountPanel, Screw
- Mounting TypeChassis Mount
- Package / CaseModule
- Number of Pins600
- Operating Temperature-40°C~135°C
- PackagingBulk
- Published2004
- Part StatusActive
- Moisture Sensitivity Level (MSL)Not Applicable
- Number of Terminations4
- ECCN CodeEAR99
- Additional FeatureUL RECOGNIZED
- HTS Code8541.30.00.80
- Terminal PositionUNSPECIFIED
- Terminal FormUNSPECIFIED
- Peak Reflow Temperature (Cel)NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)NOT SPECIFIED
- Reference StandardIEC-747-6
- JESD-30 CodeR-XXFM-X4
- Number of Elements1
- Output Current1.05kA
- Case ConnectionISOLATED
- Halogen FreeNot Halogen Free
- Max Repetitive Reverse Voltage (Vrrm)1.2kV
- Reverse Voltage1.2kV
- Hold Current300mA
- Trigger Device TypeSCR
- Voltage - Gate Trigger (Vgt) (Max)2.2V
- Current - Non Rep. Surge 50, 60Hz (Itsm)17A @ 50Hz
- Current - Gate Trigger (Igt) (Max)250mA
- Max Forward Surge Current (Ifsm)14kA
- Current - On State (It (RMS)) (Max)1050A
- StructureSingle
- Repetitive Peak Off-state Voltage1200V
- Current - On State (It (AV)) (Max)669A
- Number of SCRs, Diodes1 SCR
- Height52mm
- Length101mm
- Width50mm
- RoHS StatusRoHS Compliant
- Lead FreeLead Free
TZ600N12KOFHPSA1 Overview

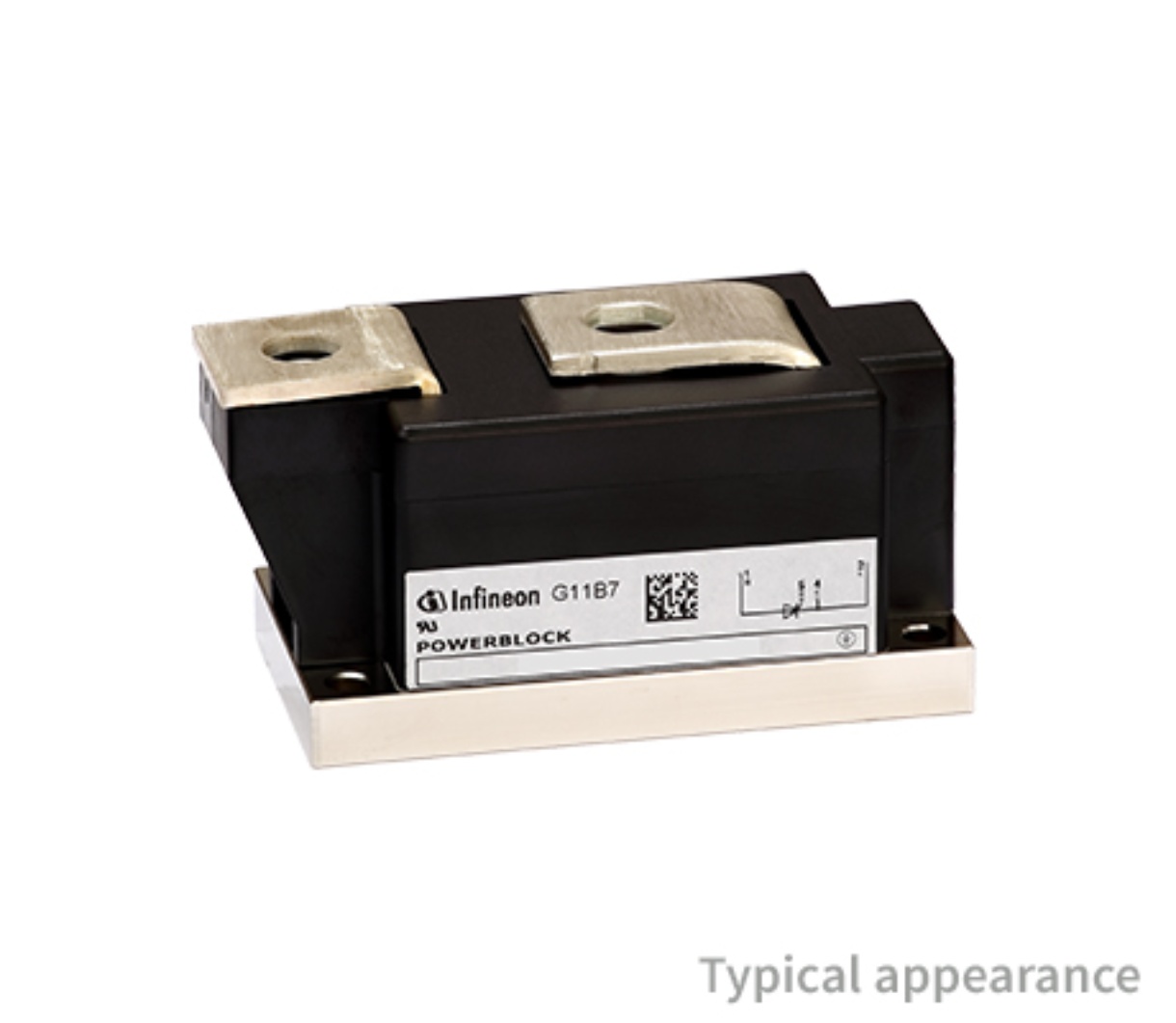

This product is manufactured by Infineon Technologies and belongs to the category of Thyristors - SCRs - Modules. The images we provide are for reference only, for detailed product information please see specification sheet TZ600N12KOFHPSA1 or the datasheet in PDF format. As a professional electronic components distributor, Ventron has five million electronic components available. Additionally, we have over 500,000 electronic components in stock ready for immediate shipment. If you have requirements, you can send us a quotation form to get the price of TZ600N12KOFHPSA1. We attach great importance to our customers' purchasing experience and are willing to establish a long-term cooperative relationship with you. If you have any questions or requirements, please feel free to contact us.
This product is manufactured by Infineon Technologies and belongs to the category of Thyristors - SCRs - Modules. The images we provide are for reference only, for detailed product information please see specification sheet TZ600N12KOFHPSA1 or the datasheet in PDF format. As a professional electronic components distributor, Ventron has five million electronic components available. Additionally, we have over 500,000 electronic components in stock ready for immediate shipment. If you have requirements, you can send us a quotation form to get the price of TZ600N12KOFHPSA1. We attach great importance to our customers' purchasing experience and are willing to establish a long-term cooperative relationship with you. If you have any questions or requirements, please feel free to contact us.
TZ600N12KOFHPSA1 More Descriptions
50 mm Single Thyristor Module with 1200 V in pressure contact technology, BG-PB501-1, RoHSInfineon SCT
SCR Module Diode 1200V 1050A(RMS) 17000A 4-Pin PB501-1 Tray
TZ600N12 - THYRISTOR / DIODE MOD
50 mm PowerBLOCK Single Thyristor Modules for Phase Control are designed and assembled with high reliable pressure contact technology using an isolated copper base plate. | Summary of Features: Pressure contact technology for high reliability; Industrial standard package; Electrically insulated baseplate; Short on fail; Highest robustness | Benefits: Fail safe; Preventing arcing on fail; Easy mounting; Fuseless design possible due to high overload capability; UL recognized | Target Applications: drives; wind; traction; cav; ups
SCR Module Diode 1200V 1050A(RMS) 17000A 4-Pin PB501-1 Tray
TZ600N12 - THYRISTOR / DIODE MOD
50 mm PowerBLOCK Single Thyristor Modules for Phase Control are designed and assembled with high reliable pressure contact technology using an isolated copper base plate. | Summary of Features: Pressure contact technology for high reliability; Industrial standard package; Electrically insulated baseplate; Short on fail; Highest robustness | Benefits: Fail safe; Preventing arcing on fail; Easy mounting; Fuseless design possible due to high overload capability; UL recognized | Target Applications: drives; wind; traction; cav; ups
