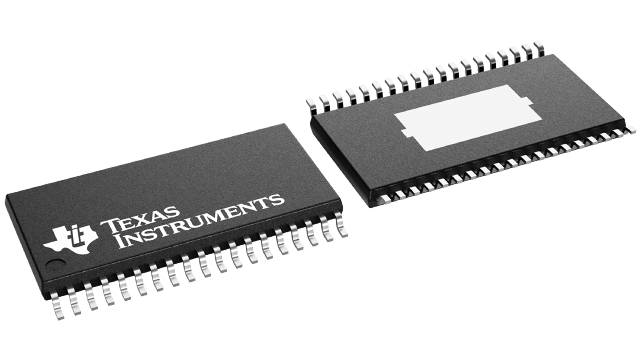

Texas Instruments TPS43331QDAPRQ1
- Part Number:
- TPS43331QDAPRQ1
- Manufacturer:
- Texas Instruments
- Ventron No:
- 3860033-TPS43331QDAPRQ1
- Description:
- Automotive 5V to 30V Dual LDO & Dual Synchronous Buck Controller
- Datasheet:
- tps43331-q1
Texas Instruments TPS43331QDAPRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS43331QDAPRQ1.
- Factory Lead Time6 Weeks
- Lifecycle StatusACTIVE (Last Updated: 2 days ago)
- Contact PlatingGold
- MountSurface Mount
- Mounting TypeSurface Mount
- Package / Case38-PowerTSSOP (0.240, 6.10mm Width)
- Number of Pins38
- Operating Temperature-40°C~125°C
- PackagingTape & Reel (TR)
- SeriesAutomotive, AEC-Q100
- JESD-609 Codee4
- Pbfree Codeyes
- Part StatusActive
- Moisture Sensitivity Level (MSL)3 (168 Hours)
- Number of Terminations38
- ECCN CodeEAR99
- Voltage - Supply1.8V~30V
- Terminal PositionDUAL
- Terminal FormGULL WING
- Peak Reflow Temperature (Cel)260
- Base Part NumberTPS43331
- Pin Count38
- Number of Outputs4
- Output Voltage10V
- Output Current4A
- Quiescent Current65μA
- TopologyStep-Down (Buck) Synchronous (2), Linear (LDO) (2)
- Min Input Voltage5V
- Frequency - Switching165kHz
- Max Input Voltage40V
- Voltage - Output 38.5V
- Voltage/Current - Output 1Controller
- Current - Output 3650mA
- Voltage/Current - Output 31.2V~8.5V 650mA
- w/LED DriverNo
- w/SupervisorYes
- Height1.2mm
- Length12.5mm
- Width6.2mm
- Thickness1.15mm
- RoHS StatusROHS3 Compliant
- Lead FreeLead Free
