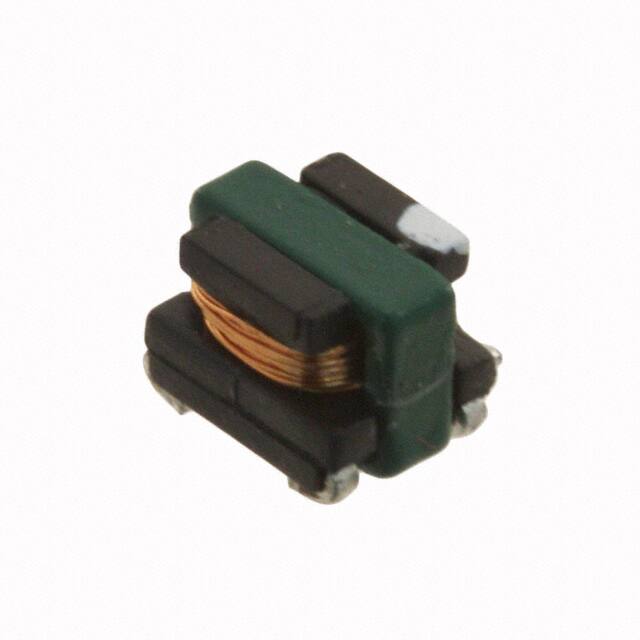

EPCOS (TDK) B82801A1333A020
- Part Number:
- B82801A1333A020
- Manufacturer:
- EPCOS (TDK)
- Ventron No:
- 7274080-B82801A1333A020
- Description:
- B82801A1333A020 datasheet pdf and Current Sense Transformers product details from TDK Electronics Inc. stock available at Ventron
- Datasheet:
- B82801A1 Series Datasheet
EPCOS (TDK) B82801A1333A020 technical specifications, attributes, parameters and parts with similar specifications to EPCOS (TDK) B82801A1333A020.
- Factory Lead Time22 Weeks
- Mounting TypeSurface Mount
- Weight0.006oz 0.17g
- PackagingTape & Reel (TR)
- SeriesB82801A
- Size / Dimension0.138Lx0.185W 3.50mmx4.70mm
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- Termination StyleJ Lead
- Inductance33μH
- DC Resistance (DCR)2.5mOhm Primary 320mOhm Secondary
- Frequency Range50kHz~1MHz
- Turns Ratio - Primary:Secondary1:20
- Height Seated (Max)0.138 3.50mm
- RoHS StatusROHS3 Compliant
B82801A1333A020 Overview
The B82801A Current Sense Transformer, manufactured by EPCOS (TDK), is an essential electronic component designed for precise current measurement applications. Weighing only 0.006oz (0.17g), this component features a compact size of 0.138L x 0.185W (3.50mm x 4.70mm), making it easy to integrate into various systems. With an active part status, it offers a high moisture sensitivity level (MSL) of 1 (Unlimited). Its inductance stands at 33μH, ensuring optimal performance. The turns ratio for primary to secondary is 1:20, guaranteeing accurate reading and reliable operation. The maximum height seated is 0.138 inches (3.50 millimeters), providing ample space for efficient use. As per RoHS compliance, the product adheres to strict regulations regarding the usage of hazardous materials.
The B82801A Current Sense Transformer, manufactured by EPCOS (TDK), is an essential electronic component designed for precise current measurement applications. Weighing only 0.006oz (0.17g), this component features a compact size of 0.138L x 0.185W (3.50mm x 4.70mm), making it easy to integrate into various systems. With an active part status, it offers a high moisture sensitivity level (MSL) of 1 (Unlimited). Its inductance stands at 33μH, ensuring optimal performance. The turns ratio for primary to secondary is 1:20, guaranteeing accurate reading and reliable operation. The maximum height seated is 0.138 inches (3.50 millimeters), providing ample space for efficient use. As per RoHS compliance, the product adheres to strict regulations regarding the usage of hazardous materials.
B82801A1333A020 More Descriptions
Current Transformer, 1:20, 7A, Smt Rohs Compliant: Yes |Epcos B82801A1333A020
Current Sense Transformers, Sensed Current=7A max, TR=1:20
P301763 EE4.2 SMD TRANSFORMER
TRANSF CURRENT SENSE 33UH SMD
CURR SENSE XFMR 1:20 SMD
Current Sense Transformers, Sensed Current=7A max, TR=1:20
P301763 EE4.2 SMD TRANSFORMER
TRANSF CURRENT SENSE 33UH SMD
CURR SENSE XFMR 1:20 SMD
The three parts on the right have similar specifications to B82801A1333A020.
-
ImagePart NumberManufacturerFactory Lead TimeMounting TypeWeightPackagingSeriesSize / DimensionPart StatusMoisture Sensitivity Level (MSL)Termination StyleInductanceDC Resistance (DCR)Frequency RangeTurns Ratio - Primary:SecondaryHeight Seated (Max)RoHS StatusView Compare
-
B82801A1333A02022 WeeksSurface Mount0.006oz 0.17gTape & Reel (TR)B82801A0.138Lx0.185W 3.50mmx4.70mmActive1 (Unlimited)J Lead33μH2.5mOhm Primary 320mOhm Secondary50kHz~1MHz1:200.138 3.50mmROHS3 Compliant-
-
2 WeeksSurface Mount--B82801A0.185Lx0.138W 4.70mmx3.50mmActive-J Lead295μH-50kHz~1MHz-0.138 3.50mmROHS3 Compliant
-
2 WeeksSurface Mount--B82801A0.185Lx0.138W 4.70mmx3.50mmActive-J Lead205μH-50kHz~1MHz-0.138 3.50mmROHS3 Compliant
-
14 WeeksSurface Mount-Tape & Reel (TR)B82801A0.185Lx0.138W 4.70mmx3.50mmActive1 (Unlimited)J Lead820μH2.5mOhm Primary 8.7Ohm Secondary50kHz~1MHz-0.138 3.50mmROHS3 Compliant
